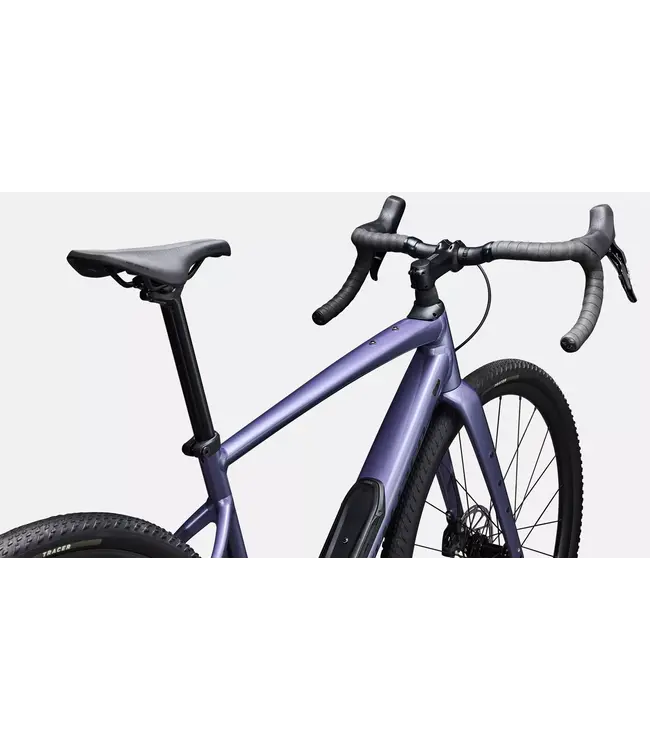

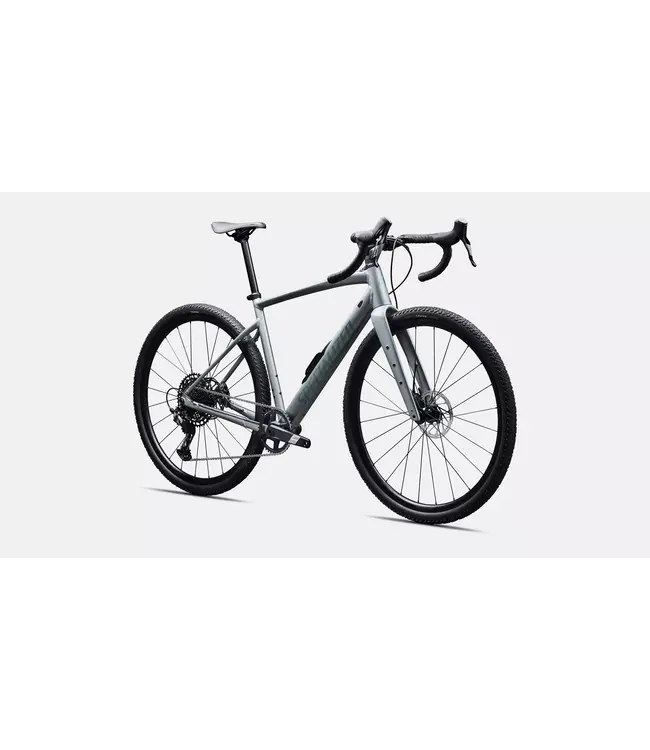

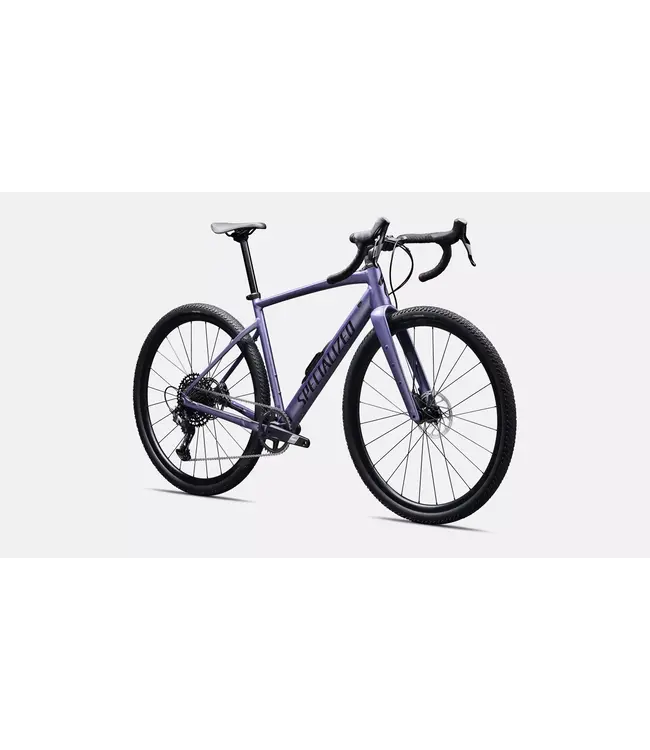

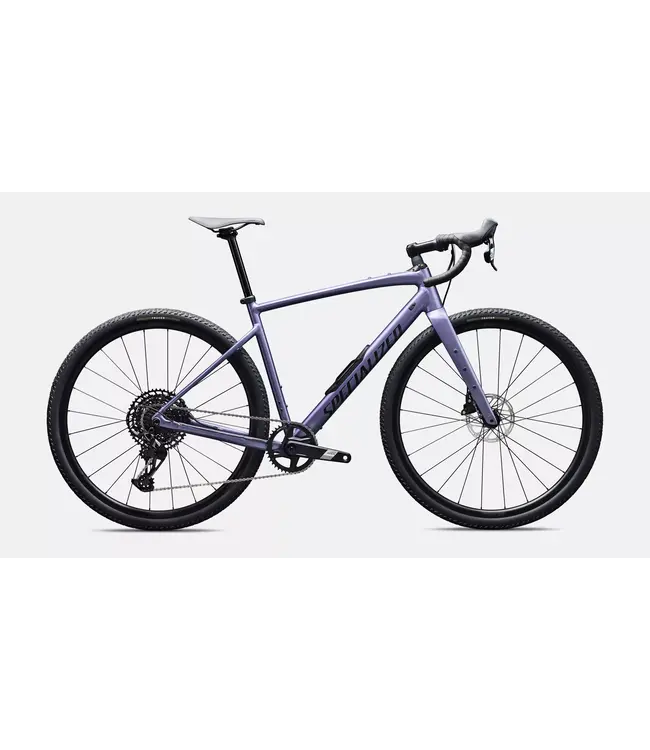

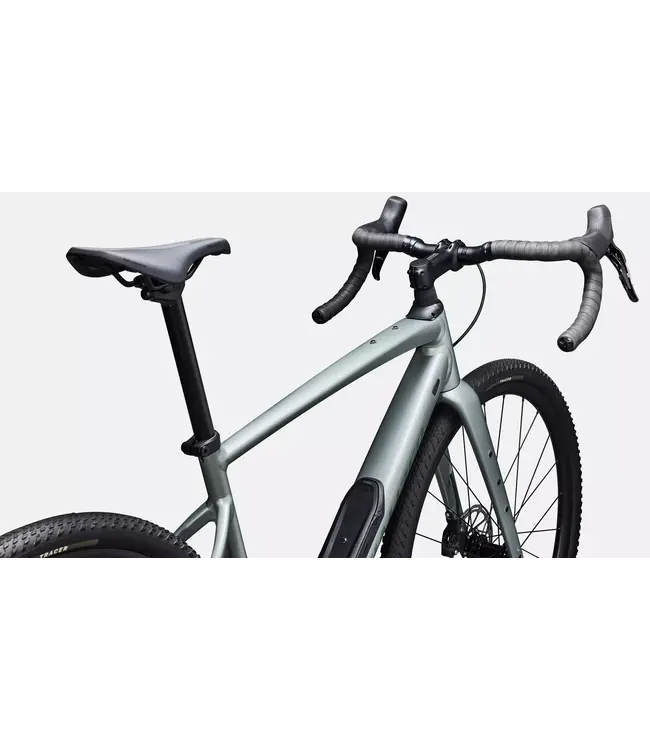

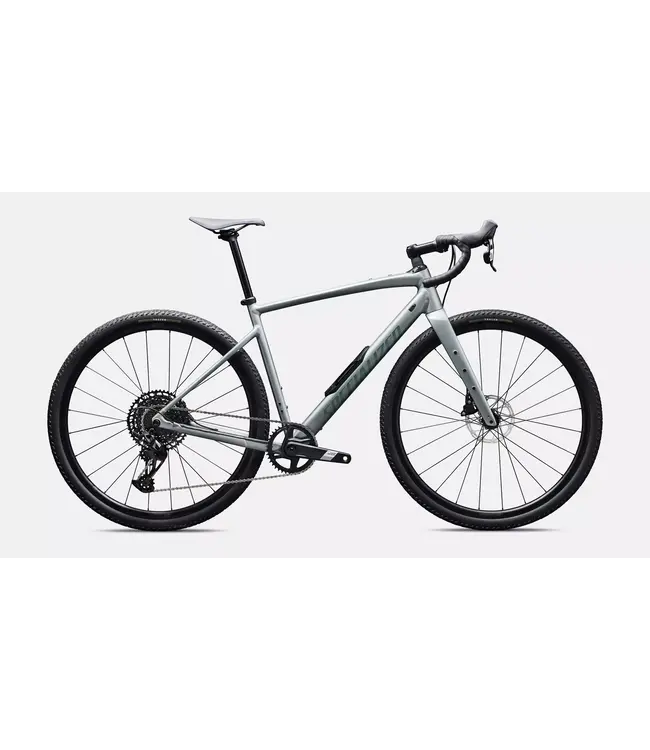

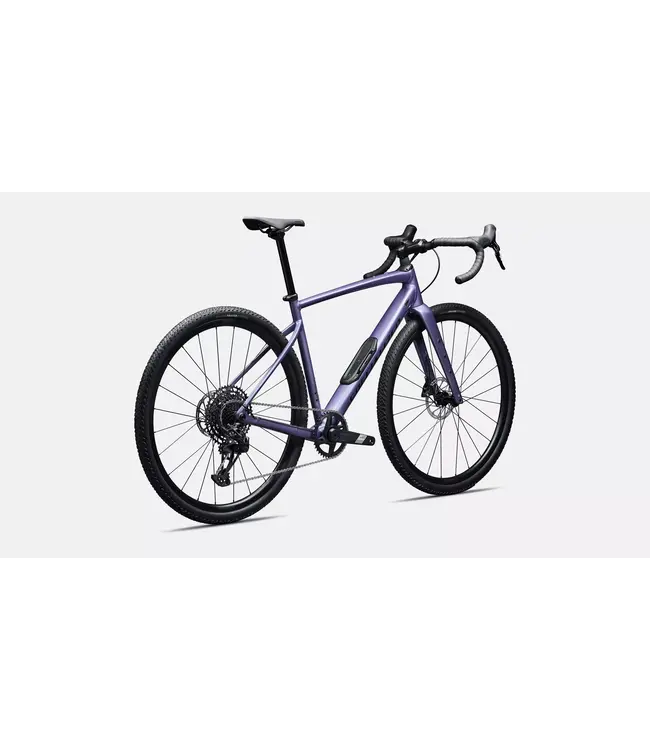

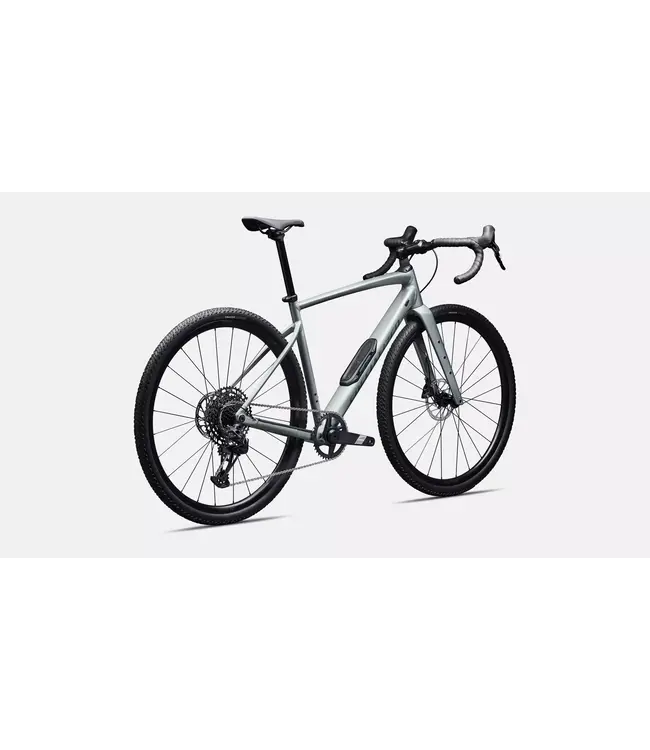

Diverge 4 Alloy
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
Technical Specifications
Frameset
- Frame
- Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front BrakeSRAM Apex, Hydraulic disc
Rear Brake
SRAM Apex, Hydraulic disc
Drivetrain
Shift LeversSRAM Apex
Crankset
SRAM Apex DUB Wide, 40t
Rear Derailleur
SRAM Apex Eagle 12-speed
Bottom Bracket
SRAM DUB BSA 68 Wide
Chain
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1210 Eagle, 11-50t
Wheels & Tires
Front WheelDT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Inner Tubes
Presta, 700x32-50mm
Front Tire
Tracer 700x45, Tubeless Ready
Rear Tire
Tracer 700x45, Tubeless Ready
Cockpit
SeatPostAlloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Seat Binder
Alloy, 30.8mm
Saddle
Body Geometry Power Sport, steel rails
Stem
Future Stem, Comp

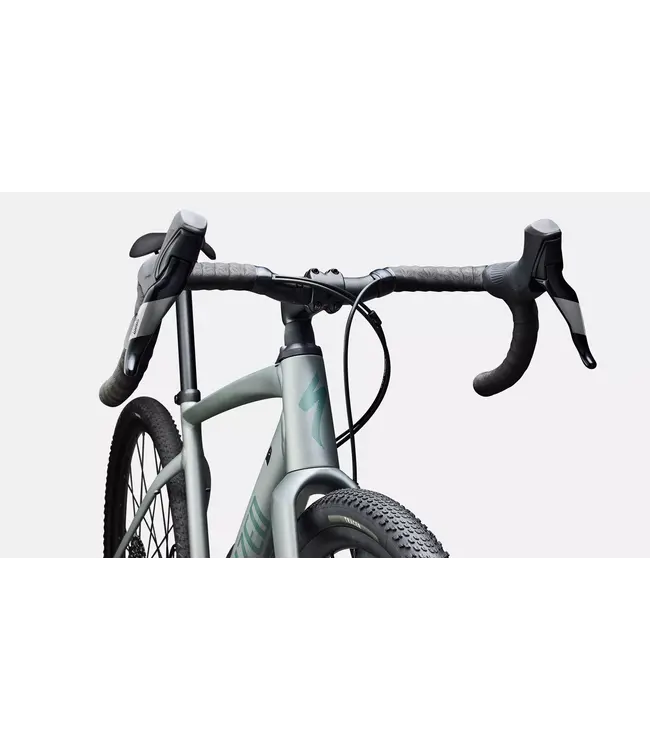

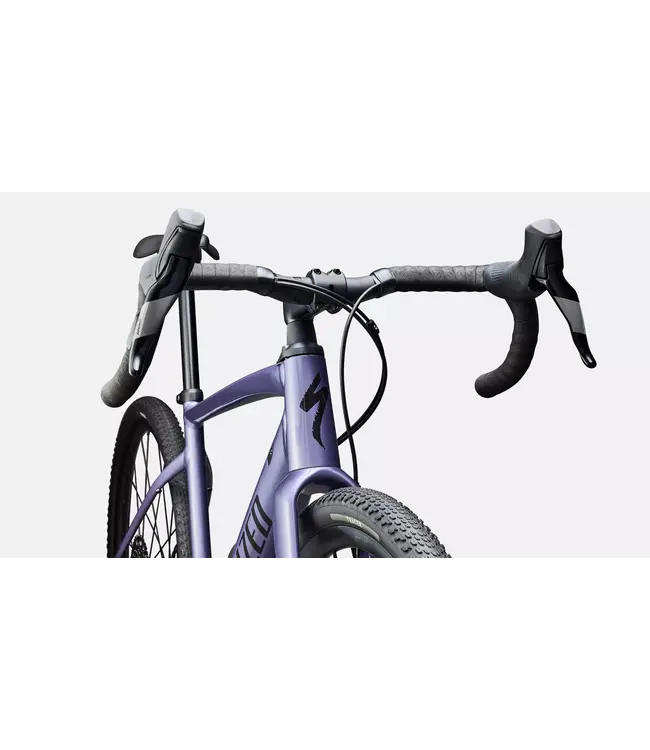

Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Suave
Accessories
- SWAT
- SWAT 3.0 internal downtube storage
Product Details
- Product ID
- 223512
Weight
Weight10.6 kg (23 lb, 5.9 oz)
Weight Size
56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 | 400 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
