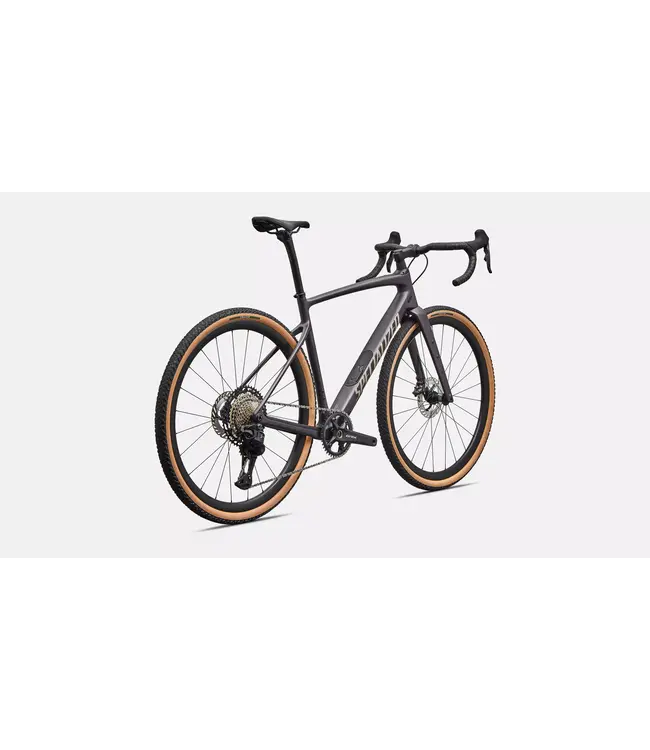

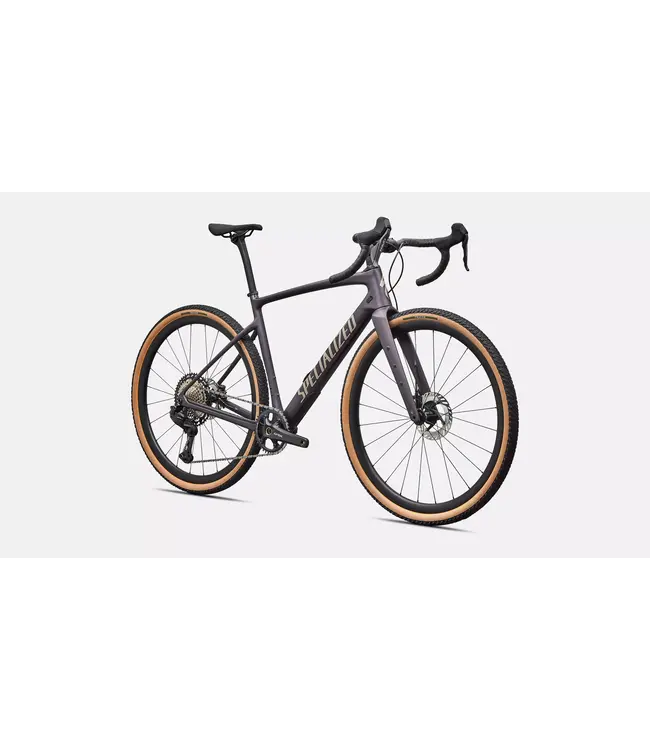

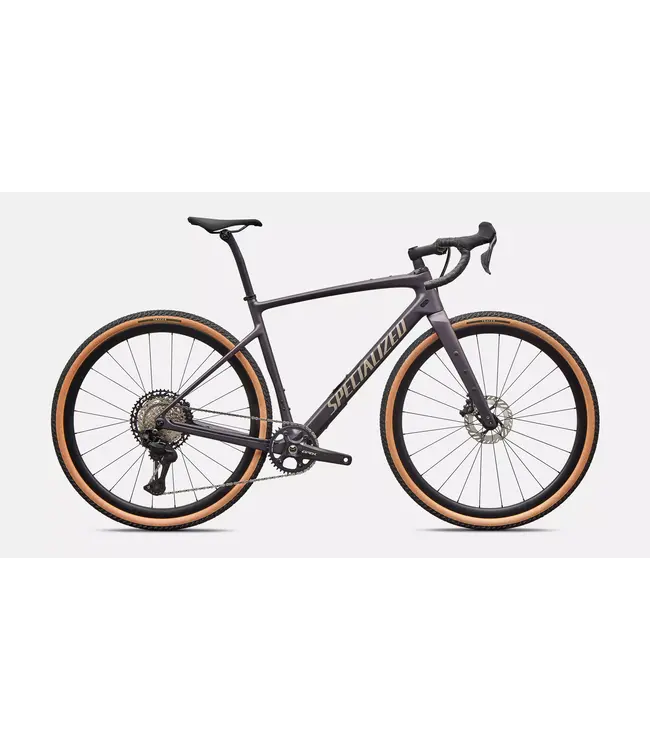

Diverge 4
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
At a Glance
Use
Gravel Adventure/Race
Frameset
FACT 9r Carbon
Suspension
Future Shock 3.2
Drivetrain/Wheels
New Shimano GRX800 Di2 / Roval Terra C
Storage
SWAT 4.0
Weight
Diverge Expert: 8.90kg
Technical Specifications
Frameset
- Frame
- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front BrakeNEW Shimano GRX Hydraulic Brake
Rear Brake
NEW Shimano GRX Hydraulic Brake
Drivetrain
Rear DerailleurNEW Shimano GRX Di2 1x12sp RX827
Shift Levers
NEW Shimano GRX Di2 RX825, 1x12sp
Cassette
Shimano Deore XT, 10-51t
Crankset
NEW Shimano GRX RX820, 40t
Bottom Bracket
Shimano Threaded BSA BB
Chain
Shimano XT M8100, 12-speed w/ quick link
Wheels & Tires
Front TireTracer 700x45, Tan Sidewall, Tubeless Ready
Rear Tire
Tracer 700x45, Tan Sidewall, Tubeless Ready
Front Wheel
Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
Rear Wheel
Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
Inner Tubes
Presta, 700x32-50mm
Cockpit
SaddleBody Geometry Power Expert
Stem
Future Stem, Pro
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset

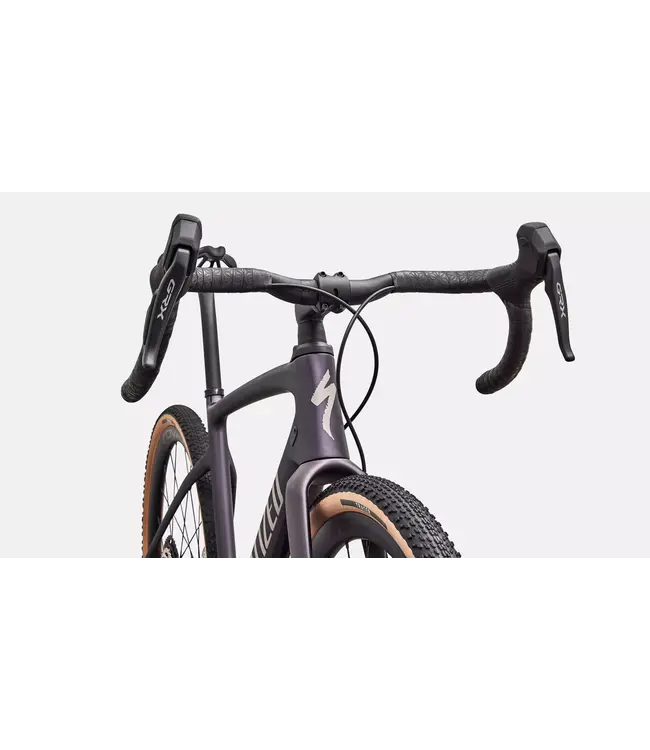

Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Seat Binder
Specialized Alloy, 30.8mm
Tape
Supacaz Super Sticky Kush
Accessories
- SWAT
- SWAT 4.0 internal downtube storage
Product Details
- Product ID
- 279306
Weight
Weight Size56
Weight
8.9 kg (19 lb, 9.9 oz)
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
