2023 Pivot Vault Pro w/700c Alloy Wheels

$6,949.00
ENDLESS DROP BAR POSSIBILITIES
Delivery time We generally fulfill and ship online orders within 2-3 business days
Ordered before 18:00:00, delivered tomorrow! You got: 03:39 hours

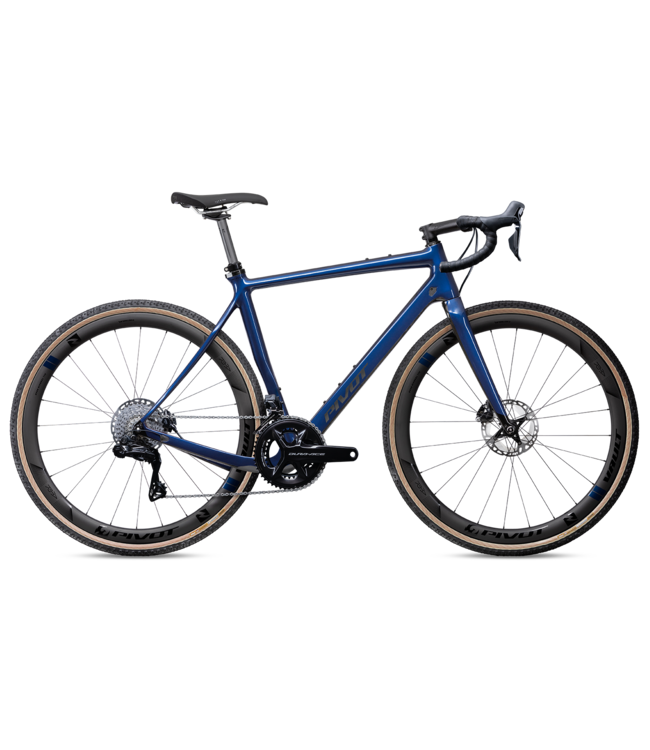

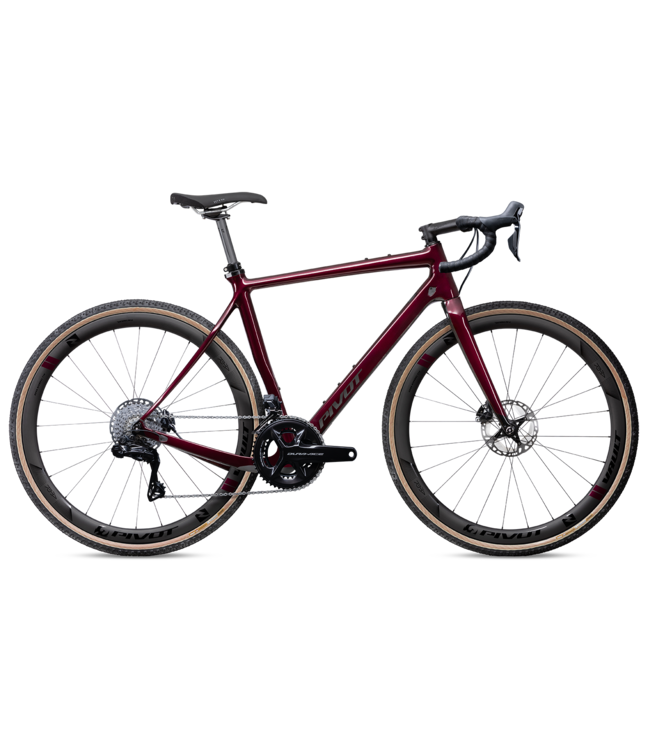

2023 Pivot Vault Pro w/700c Alloy Wheels

With generous tire clearance thanks to dual dropped chainstays, the Vault is a tire change away from being ready for any road & any pursuit. From 25c’s to high volume 650b, set your tire selection free, & tackle anything from primitive gravel to smooth single track to asphalt, & everything in between.

PRODUCT DETAILS

Get everything you need to know about the Vault.

  • Next-generation cross/gravel/road geometry – works for any surface
  • Gobs of tire clearance and 1x or 2x drivetrain compatible
  • Clears sub-compact chainrings, traditional road gearing and 1x systems with clearance for crank arm based power meters
  • Removable FD mount with integrated cover
  • Fits up to 700 X 47C and 650b x 2.0” tires
  • Patent pending ISO FLEX Technology fits 27.2 or 30.9 seatposts and isolates the seatpost from the frame for extraordinary comfort with uncompromising frame stiffness and control
  • Internal cable routing for all lines including stealth style dropper posts via Pivot’s easy to service and silent Cable Port System

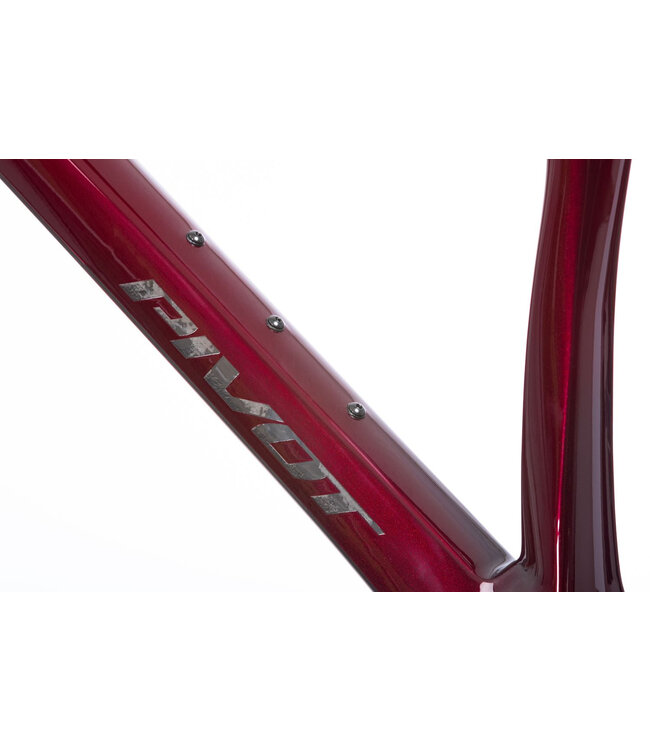

  • Top tube bag mounts to fuel the longest rides
  • Hidden fender mounts for a clean, sleek appearance and all weather versatility
  • Full carbon frame featuring proprietary hollow core internal molding technology for a high stiffness to weight ratio
  • Optimized layup structure with ideal top tube and stay shaping for comfort and power output on long rides, rough roads and epic adventures
  • BB386EVO bottom bracket substantially increases torsional rigidity, strength and power transfer, while providing increased rear tire clearance
  • Frame weight: 998 grams
  • Available as a complete bike or as a frame/fork/headset
  • Sizes XS, S, M, L, XL for riders between 5' (152cm) and 6'5" (196cm)
KIT Ultegra Di2 XPLR AXS
STARTING PRICE $6,699 USD $6,949 USD
FRAME Vault Vault
WHEEL SIZE 700C 700C
REAR SHOCK - -
FORK Pivot Vault Carbon Pivot Vault Carbon
HEADSET Pivot Precision Sealed Integrated Cartridge Pivot Precision Sealed Integrated Cartridge
REAR DER Shimano Ultegra Di2 8150 12-Speed SRAM FORCE XPLR ETAP AXS 12-Speed
CASSETTE Shimano Ultegra HG-8100 12 Speed 11-34t Sram XG-1271 10-44t
SHIFTER Shimano Ultegra Di2 8170 12-Speed SRAM FORCE ETAP AXS 12-Speed

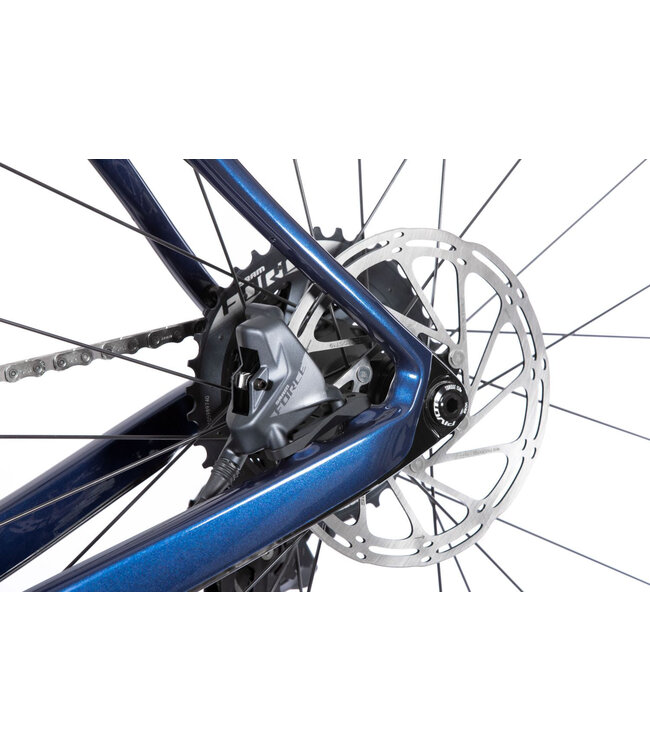

BRAKES Shimano Ultegra 8170 2-piston Sram Force e-Tap AXS 2-piston
CRANKSET Praxis Zayante Carbon-S 48/32t Sram Force 1 DUB 38t
HANDLEBAR Easton EA70 AX Aluminum - 40cm (XS), 42cm (SM), 44cm (MD), 46cm (LG, XL) Easton EC70 AX Carbon - 40cm (XS), 42cm (SM), 44cm (MD), 46cm (LG, XL)
GRIPS - -
STEM Phoenix Team 31.8mm Phoenix Team 31.8mm
SEATPOST Phoenix Pro ISO Flex Carbon Phoenix Pro ISO Flex Carbon
SADDLE Phoenix WTB Pro Volt Phoenix WTB Team Volt
WHEELS DT Swiss CR 1600 SPLINE 22mm - 700C
12x100 F/12x142 R
DT Swiss CR 1600 SPLINE 22mm - 700C
12x100 F/12x142 R
WHEEL MATERIAL Alloy Alloy
TIRES Maxxis Rambler 700c x 40mm TR Tan Wall EXO
Maxxis Rambler 700c x 40mm TR Tan Wall EXO
Maxxis Rambler 700c x 40mm TR Tan Wall EXO
Maxxis Rambler 700c x 40mm TR Tan Wall EXO
ROTOR Shimano XT CenterLock - 160mm
Shimano XT CenterLock - 160mm
Sram Centerline CenterLock - 160mm
Sram Centerline CenterLock - 160mm
CHAIN Shimano CN-M8100 12-Speed Sram Force Flattop 12-Speed
