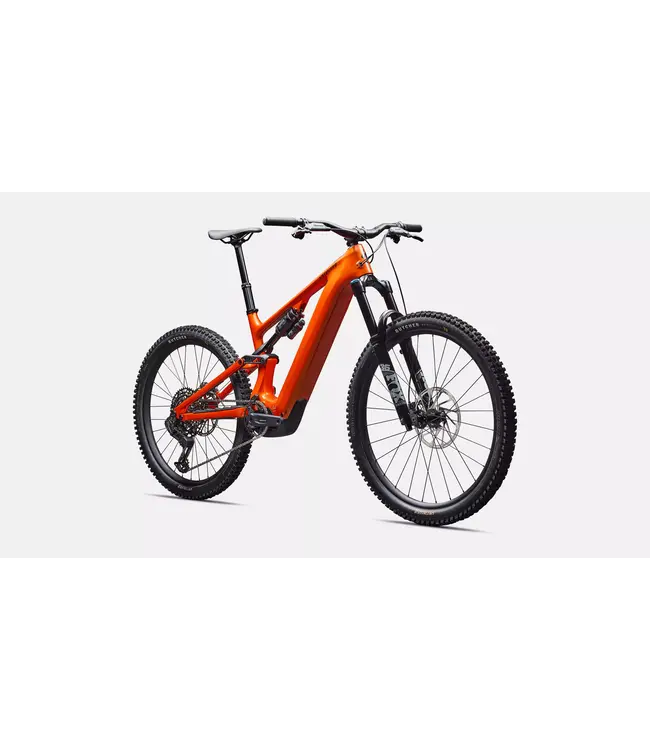

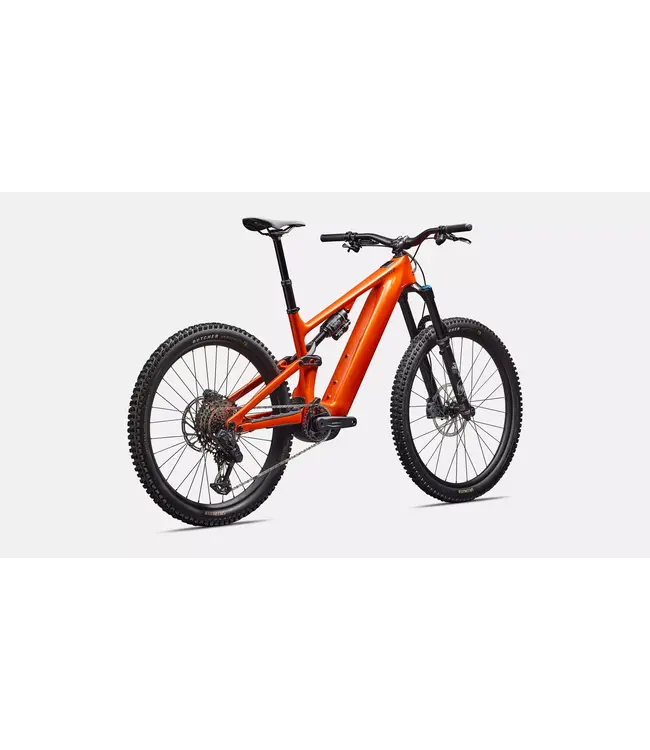

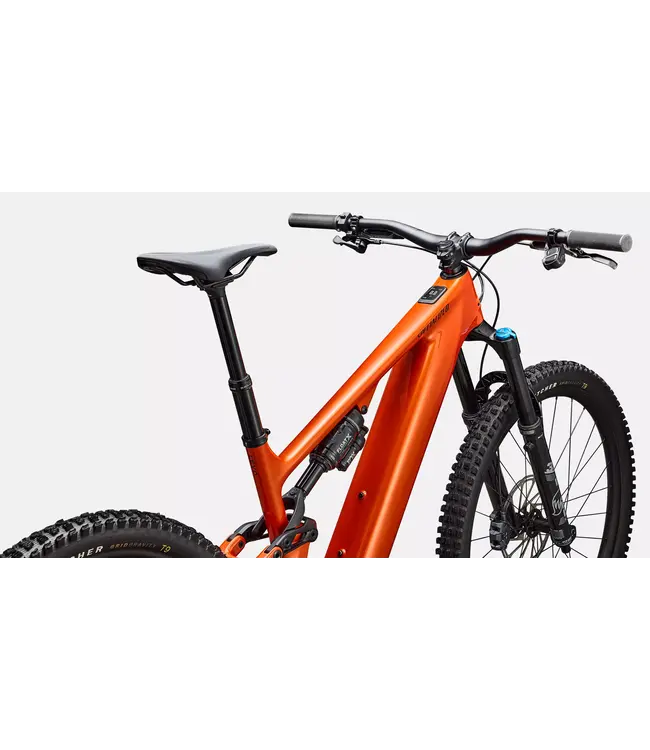

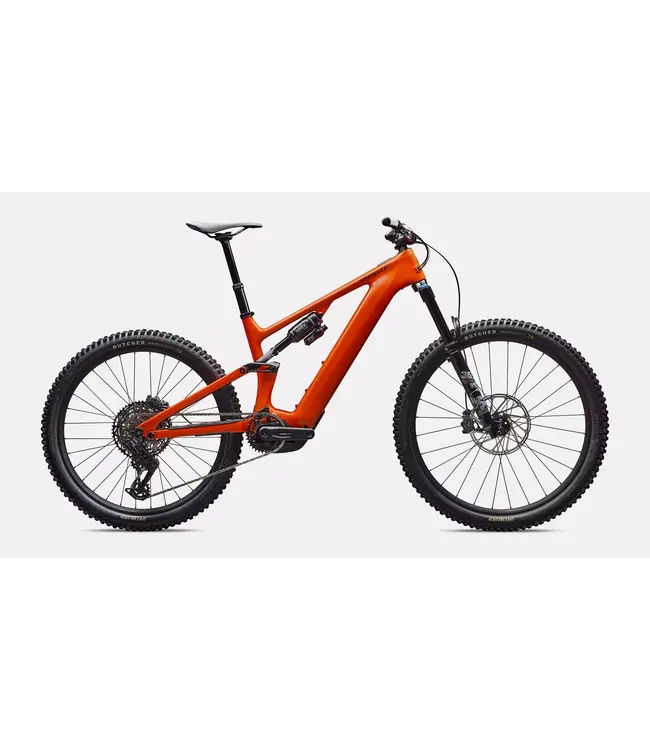

Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
Use
Full Power E-MTB Trail
E-System
Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
Frame
FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension
Front: 160mm FOX FLOAT 36 Rhythm GRIP
Rear: 150mm GENIE - FOX FLOAT X Performance
Drivetrain
SRAM S1000 Eagle T-Type AXS
Wheels
Specialized Alloy Rims / Bear Pawls hubs
Technical Specifications
E-bike
- UI/Remote

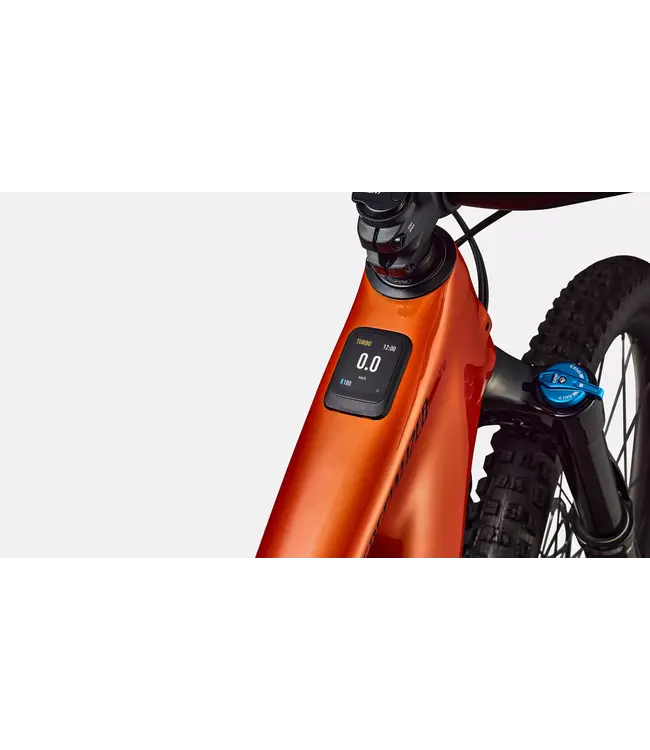

- All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
-
Motor
-

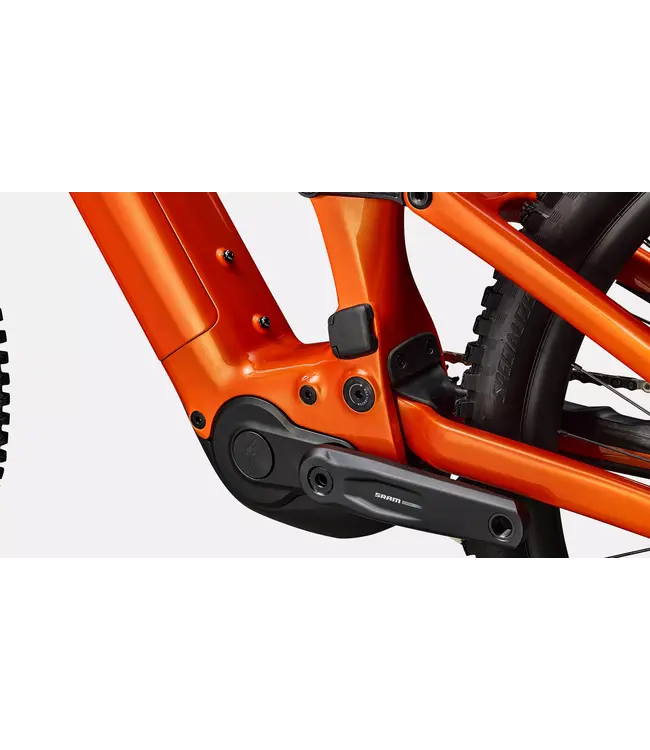

All New Specialized 3.1 Motor, 101Nm torque, 666W power
-
-
Charger
-
Specialized 4amp charger
-
-
Battery
-
840Wh battery
-
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Suspension
- Fork
- FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel

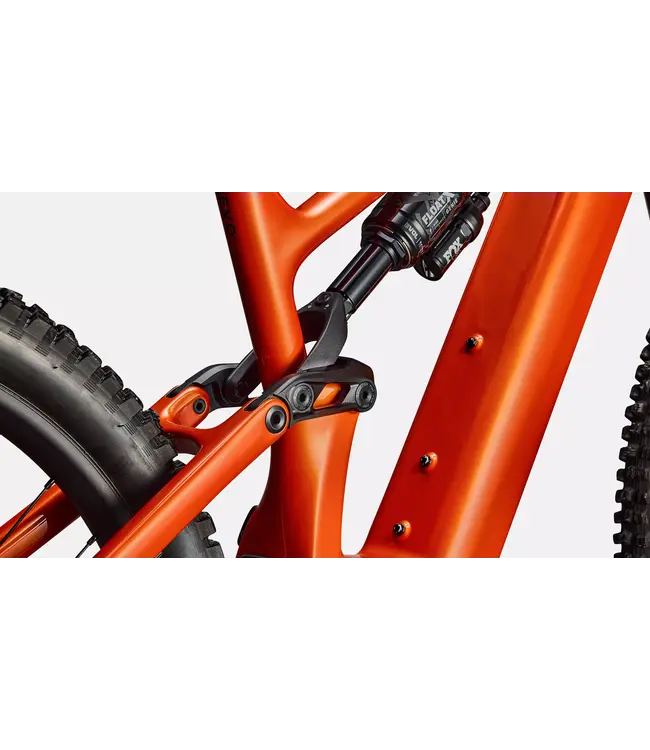

- Rear Shock

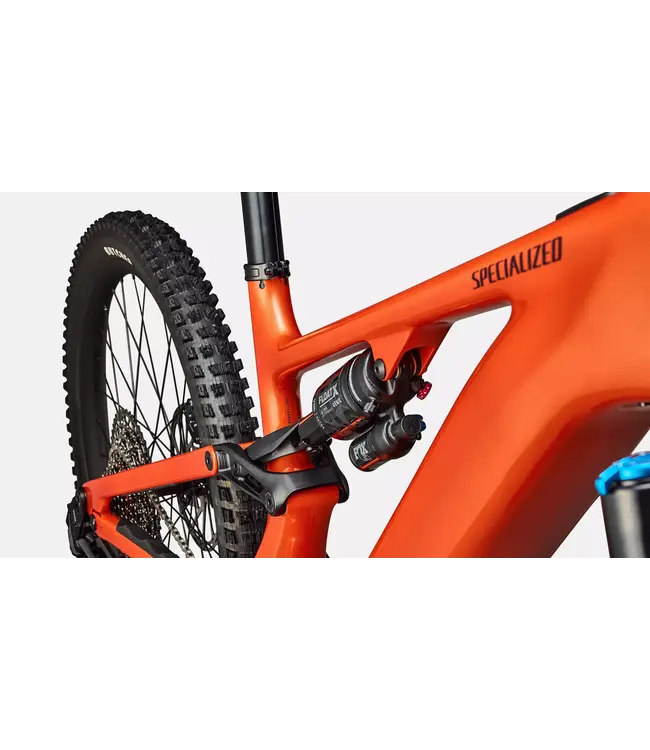

- FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
Brakes
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
-
Rear Brake
-
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor
-
Drivetrain
- Cassette
- SRAM 1270 Transmission Cassette, 12 Spd,10-52t
-
Chainrings
-
SRAM T-type ring, 34T, 104 BCD, steel
-
-
Shift Levers
-
SRAM AXS POD Controller
-
-
Chain
-
SRAM GX Eagle Transmission Flattop Chain
-
-
Rear Derailleur
-
SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
-
-
Crankset
-
SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
-
Wheels & tires
- Front Hub
- Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Rear Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
- Front Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Spokes
- DT Swiss Industry
- Rear Hub
- Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims
- Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta valve
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore
- Handlebars

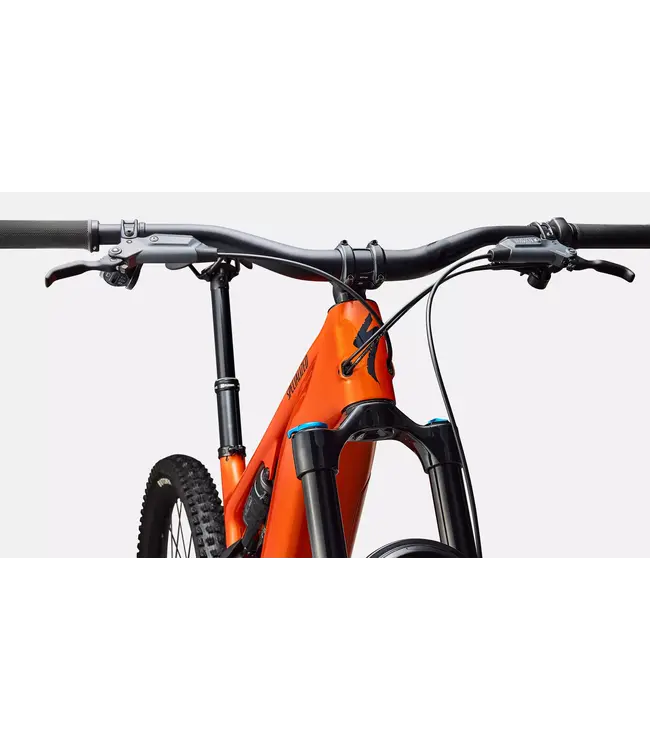

- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
- Saddle
- Bridge Comp, Hollow Cr-mo rails
- Grips
- Specialized Trail Grips
- SeatPost
- Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 218708
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
Weight
- Weight
- 24.41 kg (53 lb, 13.0 oz)
- Weight Size
- S4
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 170 | 190 | 190 | 190 |
| Stack | 618 | 626 | 638 | 652 | 667 |
| Reach | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
